Reinforcement axle for AUDI VW 02M 02Q Gearbox 4th Gear

Reinforcement axle for AUDI VW 02m 02q gearbox

This Teflon axle provides reinforcement against the shaft, which will prevent, on a turbo assembly for example, with a lot of torque, the order from being twisted and the gearbox axle breaking.

ideal for mounting large turbo swaps etc...

02M & 02Q Gearbox 4th Gear Input Shaft Support

Fits ALL VW/Audi/Seat and Skoda 6 speed manual gearboxes 02M and 02Q

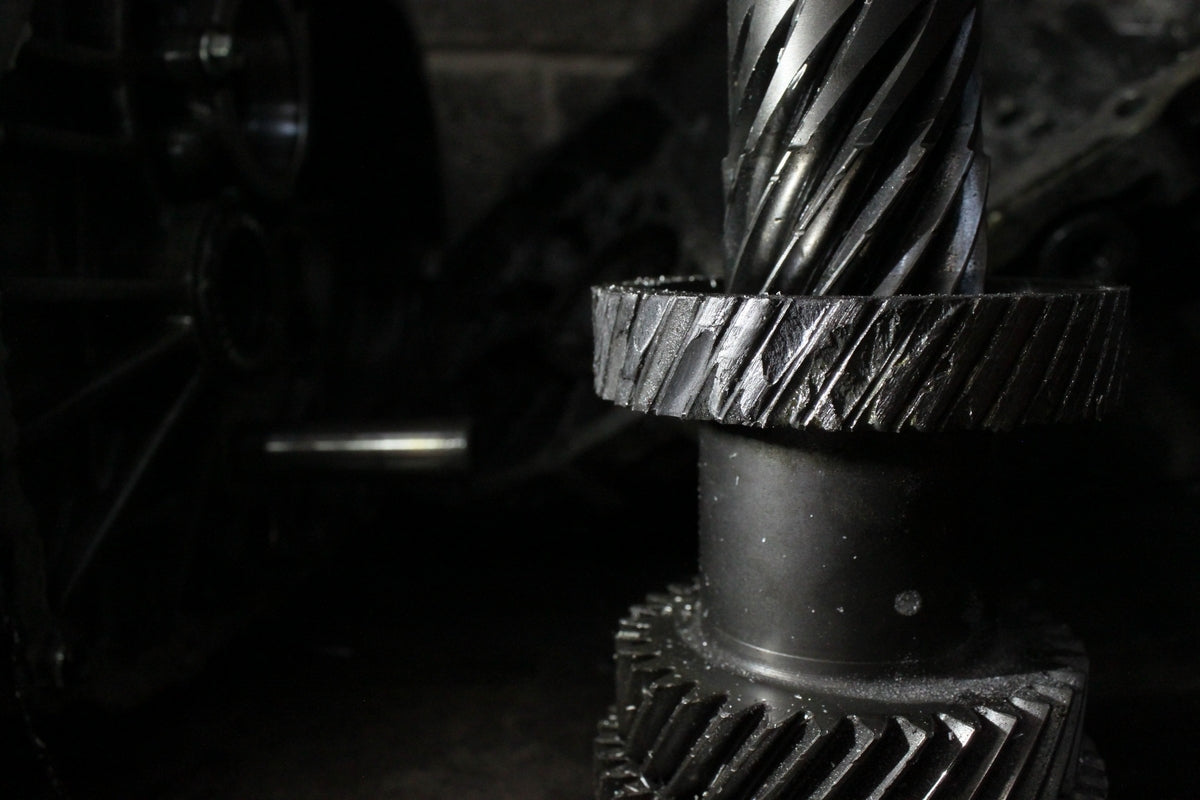

One of the biggest weaknesses of the 02M and 02Q gearboxes is the stripping of the 4th gear teeth. This can become a major problem on high torque vehicles. The problem is that the vibration and twisting force that goes through the input shaft and the opposite shaft, this spreads the gears apart. The result is that the 4th gear no longer engages properly, this can cause the 4th gear to break or the teeth to strip.

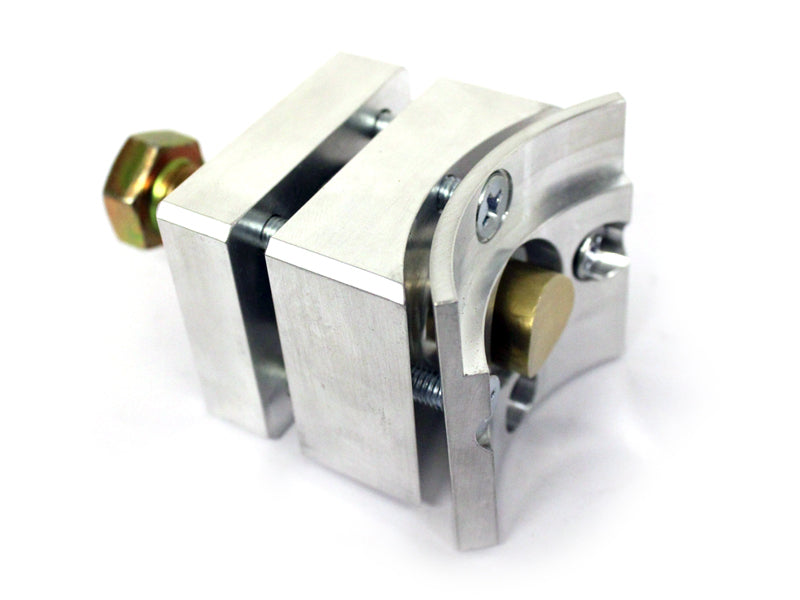

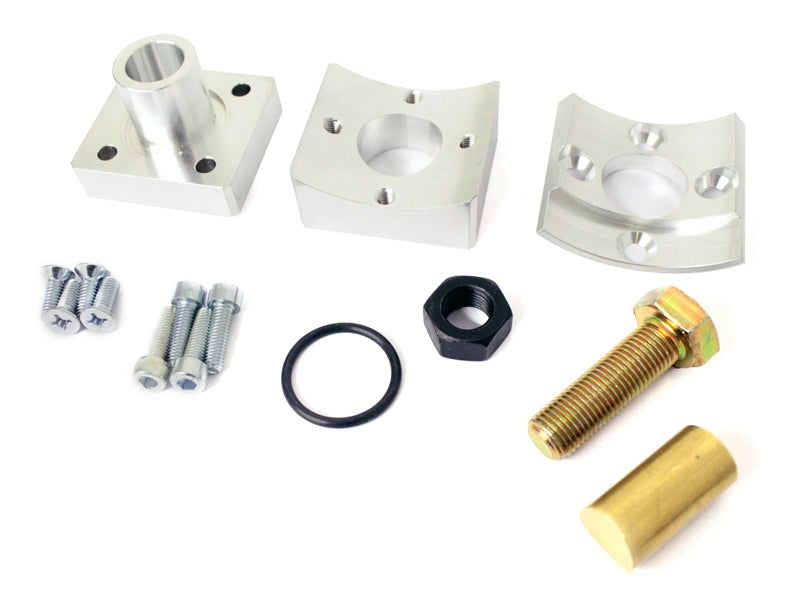

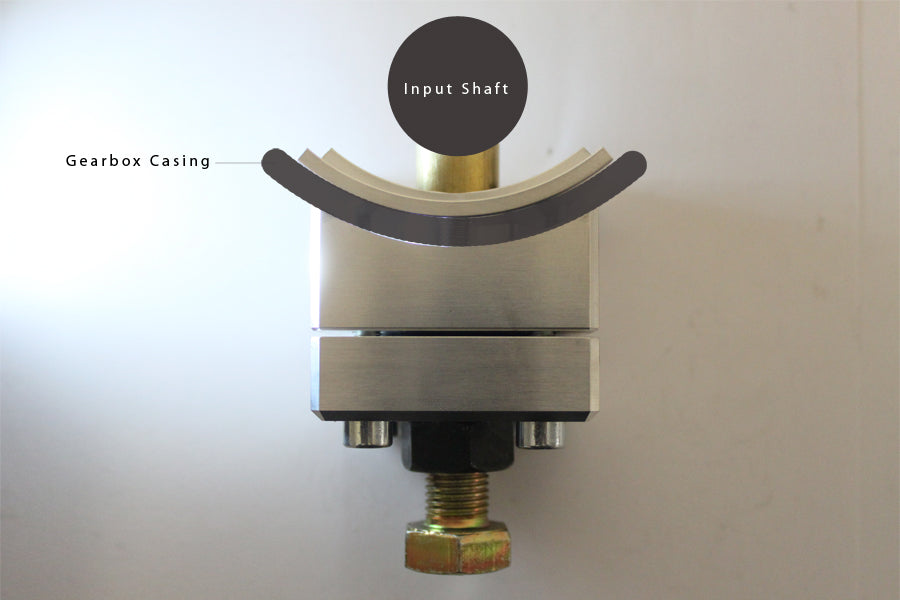

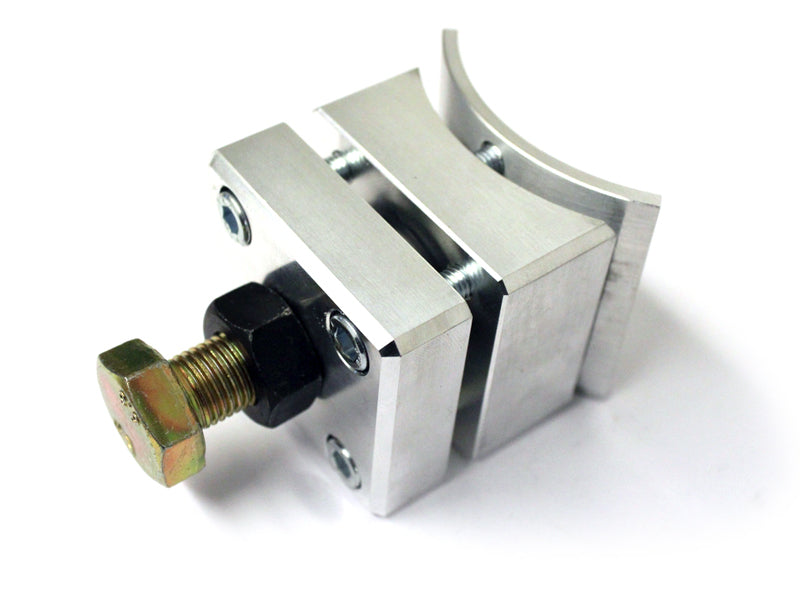

The carrier works by a brass bracket pushing against the input shaft to stop the two 4th gears from separating. The carrier preload is adjustable and should be checked periodically.

We highly recommend this modification for vehicles operating at 400 ft/lbs+ (for both gasoline and diesel applications)

Please see our listings for the 02M/02Q Gearbox Reinforcement Plate and 02M/02Q Steel Shifter/Selector Forks

To fit the following engine codes with the 02M 6 speed gearbox (engine codes can be found on a sticker on the cam belt cover or in the boot):

VW Golf Mk4 - AJM, AUY 115 / ASZ 130 / ARL 150

VW Bora / Jetta Mk4 - AJM, AUY 115 / ASZ 130 / ARL 150

VW Polo - ASZ, BLT 130

VW Sharan - ANU 90 / AUY 115 / ASZ 130 / BTB 150

Audi A3 8L - AJM, AUY 115 / ASZ 130 / ARL 150

Seat Leon 1M - AJM, AUY 115 / ASZ 130 / ARL 150

Seat Ibiza Mk4 - ASZ, BLT 130 / BPX, BUK 160

Cordoba Seat - ASZ, BLT 130

Seat Toledo - ASZ, BLT 130

Alhambra Headquarters - ANU 90 / AUY 115 / ASZ 130 / BTB 150

Skoda Octavia Mk1 - ASZ 130

Skoda Fabia vRS - ASZ, BLT 130

Ford Galaxy - ANU 90 / AUY 115 / ASZ 130 / BTB 150

To fit the following engine codes with the 02Q 6 speed gearbox (engine codes can be found on a sticker on the cam belt cover or in the boot):

VW Golf Mk5 – BKD/AZV (PD140), BMM (2.0 8v PD140) and BMN (PD170)

VW Golf Plus - BKD / AZV (PD140), BMM (2.0 8v PD140) and BMN (PD170)

VW Golf Mk6 – CFFA/CBAA (CR136), CBAB/CFFB (CR140) and CFGB/CBBB (CR170)

VW Jetta - BKD/AZV (PD140), BMM (2.0 8v PD140) and BMN (PD170)

VW Jetta - CBDA (CR136), CBDB / CJAA / CLCB / CFHC / CFFB (CR140) and CEGA (CR170)

VW Passat - BWV 120, BVE 122, BMA 136, BKP / BMP (PD140), BMA and BUZ 163, BMR (PD170)

VW Passat - CBAB (CR140), CBAC (CR143 Bluemotion) and CBBB (CR170)

VW Passat CC – CBAA (CR136), CBAB/CFFB (CR140) and CLLA/CFGB/CBBB (CR170)

VW Touran - BKD / AZV (PD140), BMM (2.0 8v PD140) and BMN (PD170)

VW Caddy - BMM (2.0 8v PD140)

VW Eos - BMM (2.0 8v PD140) and CBAB / CFFB (CR140)

VW Scirocco - CFHC / CBDB (CR140)

VW Sharan - BVH 136 / BRT 140

VW Tiguan - CBAB / CFFB (CR140)

Audi A3 - BKD / AZV (PD140), BMM (2.0 8v PD140) and BMN (PD170)

Audi A3 – CBAA (CR136), CBAB/CLJA (CR140) and CBBB (CR170)

Audi A6 - BRF / BNA 136 and CAGB (CR136)

Audi TT - CBBB (CR170)

Seat Leon - BKD / AZV (PD140), BMM (2.0 8v PD140) and BMN (PD170)

Seat Leon - CLCB / CFHC (CR140) and CEGA / CFJA (CR170)

Seat Toledo - BKD / AZV (PD140), BMN (PD170) and CEGA (CR170)

Seat Altea - BKD / AZV (PD140), BMM (2.0 8v PD140) and BMN (PD170)

Seat Altea - CFHC / CBDB (CR140) and CEGA (CR170)

Skoda Octavia - BKD / AZV (PD140), BMM (2.0 8v PD140) and BMN (PD170)

Skoda Octavia - CLCB / CFHC (CR140) and CEGA (CR170)

Skoda Superb – CLJA/CFFB (CR140) and CFGB/CBBB (CR170)

Skoda Yeti - CBDB (CR140) and CEGA (CR170)

If your model is not listed, ASK!

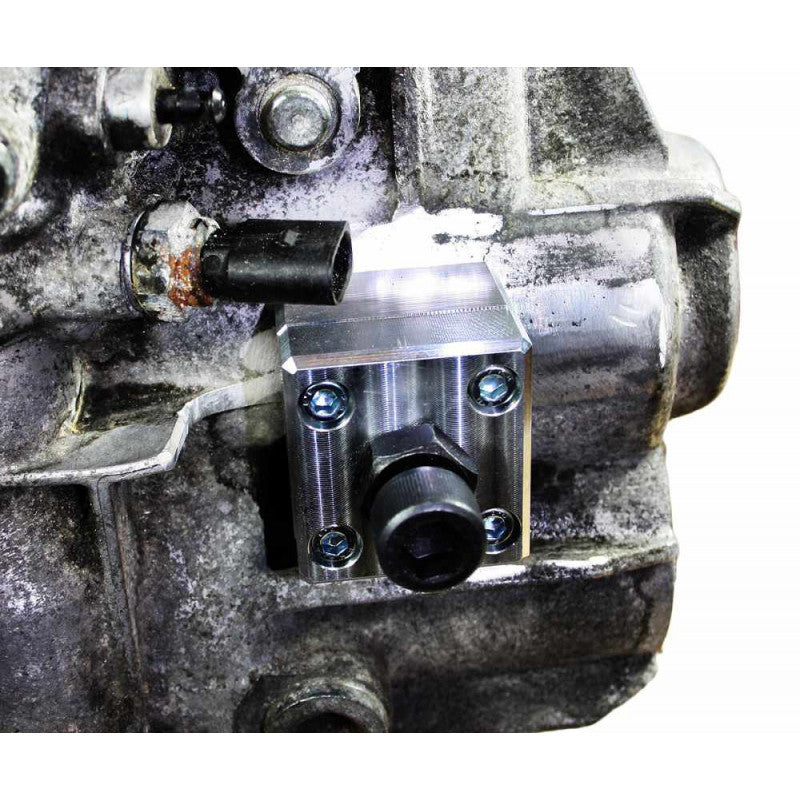

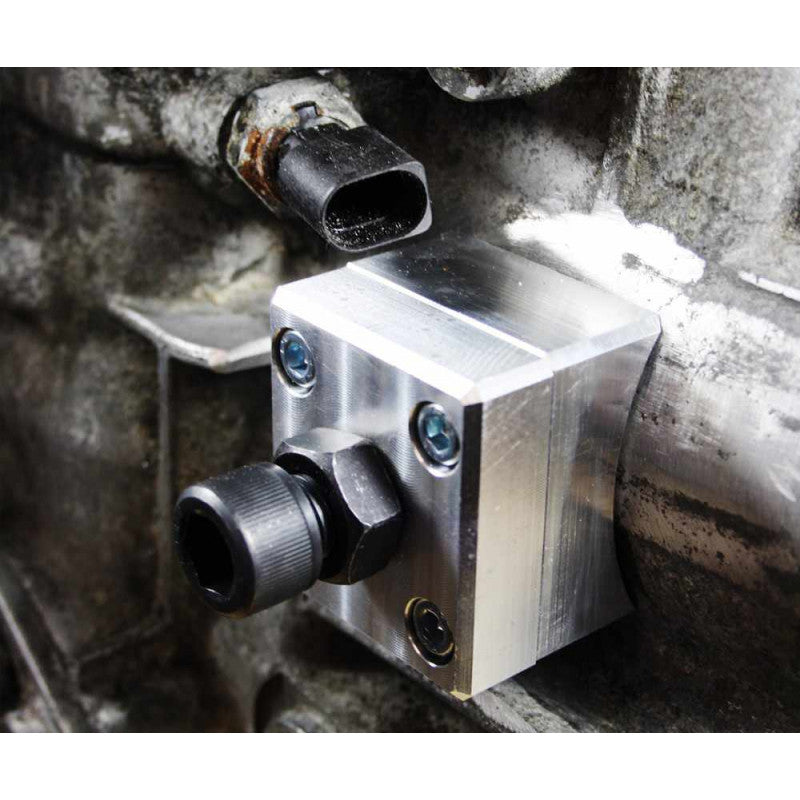

Note: Installing it will obstruct the reverse sensor plug. This will require connectors instead of using the socket
