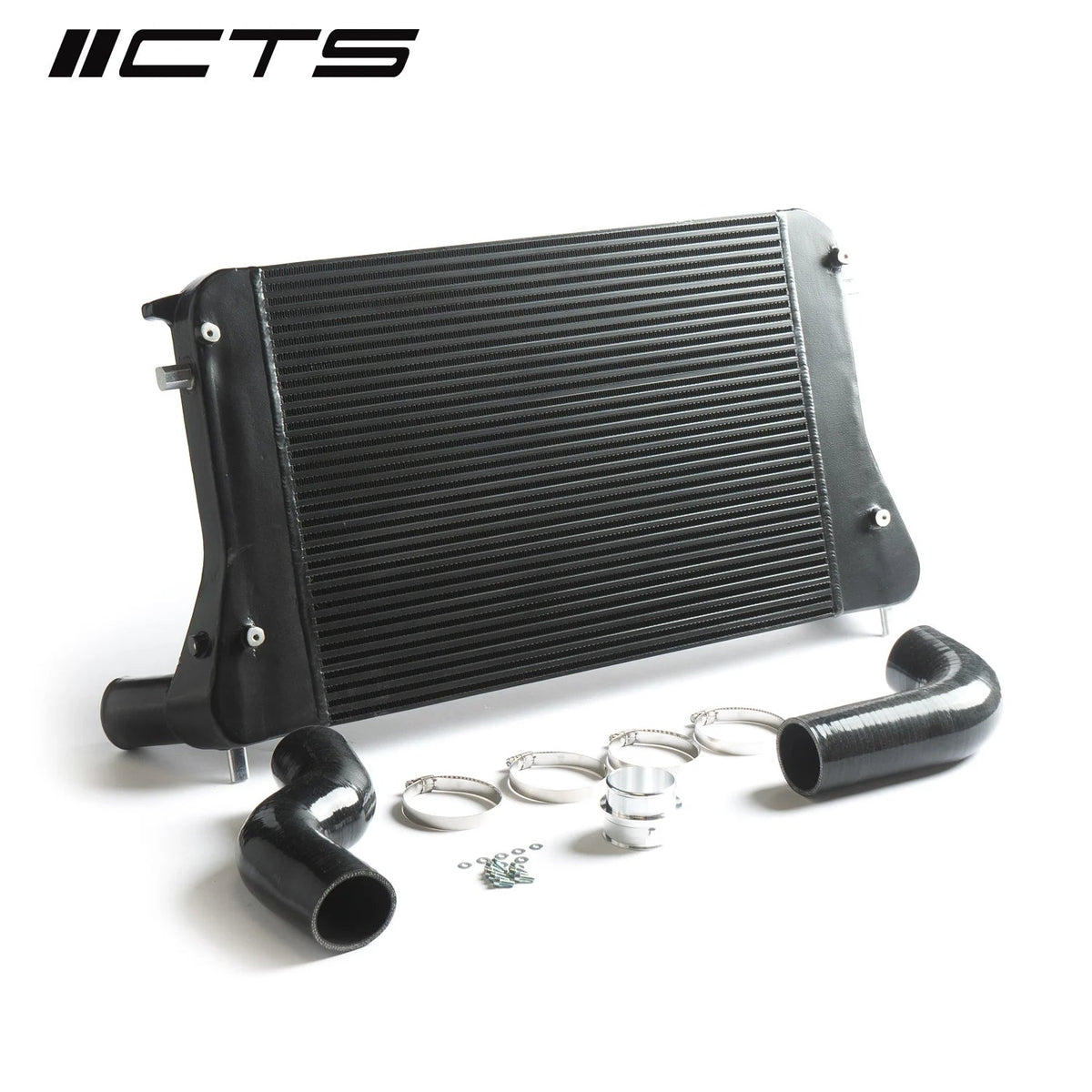

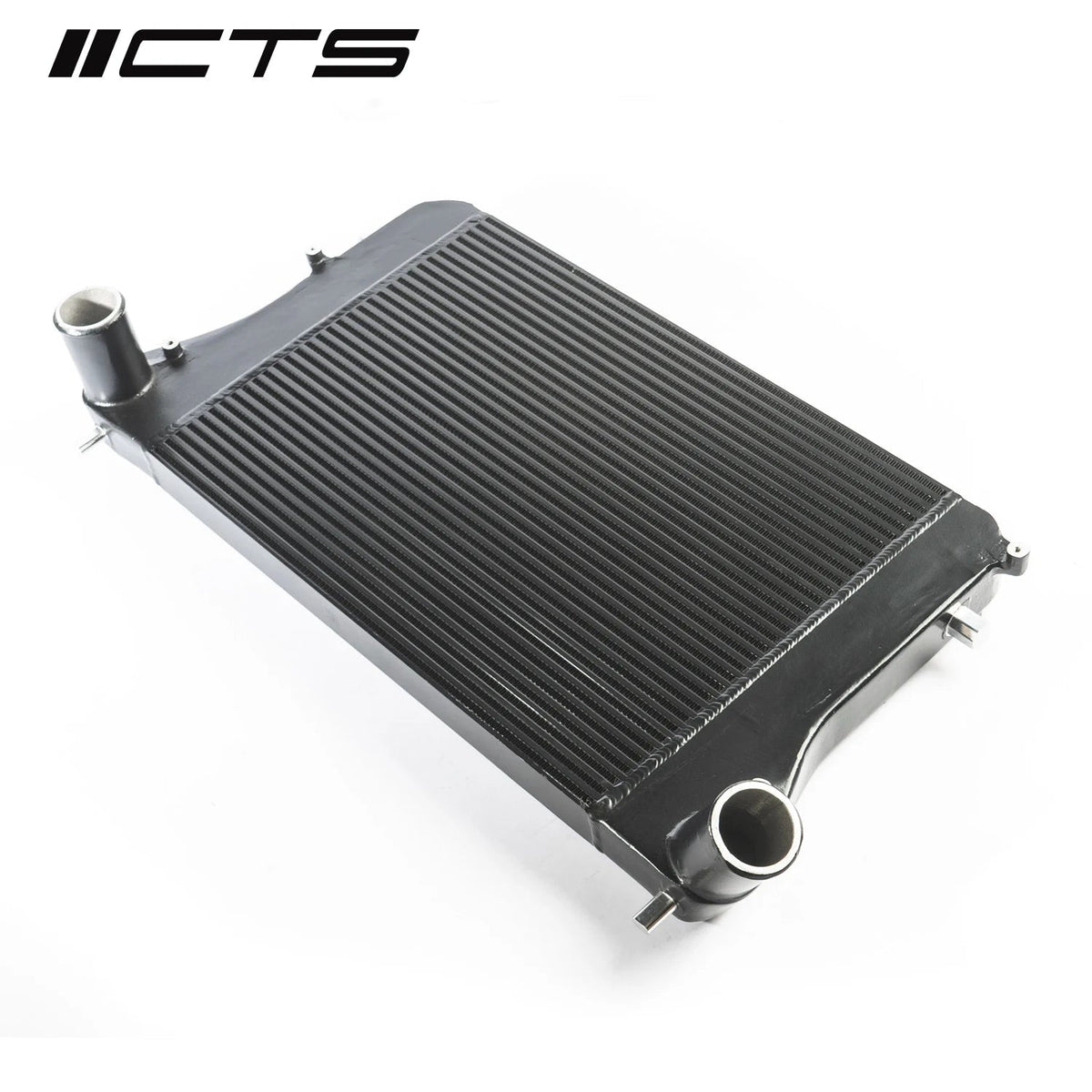

CTS Turbo Direct Fit Intercooler Kit for EA113 and EA888 (MK5, MK6 vehicles)

The CTS Turbo Direct Fit FMIC kit for EA113 and EA888.1 2.0T engines is designed to replace the stock front intercooler (FMIC). It installs without any cutting or modification to the bumper. The stock FMIC is suitable for stock boost levels. However, once increased by ECU upgrades or modifications, it struggles to maintain the correct charge air temperature. Higher charge air temperatures can cause boost cutoff and delayed timing, reducing the power output of your vehicle.

The CTS Direct-Fit FMIC uses a high-efficiency plate-and-bar intercooler, which helps reduce pressure drop. This reduction means your turbo will have to work less hard to achieve a given boost level. If your turbo generates 30 psi of boost pressure into the turbocharger and your intercooler has a pressure drop of 10 psi, the boost pressure measured by your ECU will be (30 psi – 10 psi) = 20 psi. With an efficient FMIC like the CTS Direct-Fit FMIC, your turbo doesn't have to work as hard to achieve the desired boost level. This has two benefits: turbo life is extended due to more efficient operation, and the boost exiting the turbocharger is cooler and denser, helping to put more power to the ground.

Product Details:

• Efficient bar and plate construction – a must for tuned vehicles
• Direct bolt-on installation
• 4 ply silicone hoses and billet adapter for turbo outlet hose
• High quality stainless steel tongs
• Low pressure drop
• Maintains factory mounting points
• No cutting of bumper or crash brackets
• Designed for power levels above 600 HP
• Core Dimensions: 23.00″ x 16.5″ x 2.00″

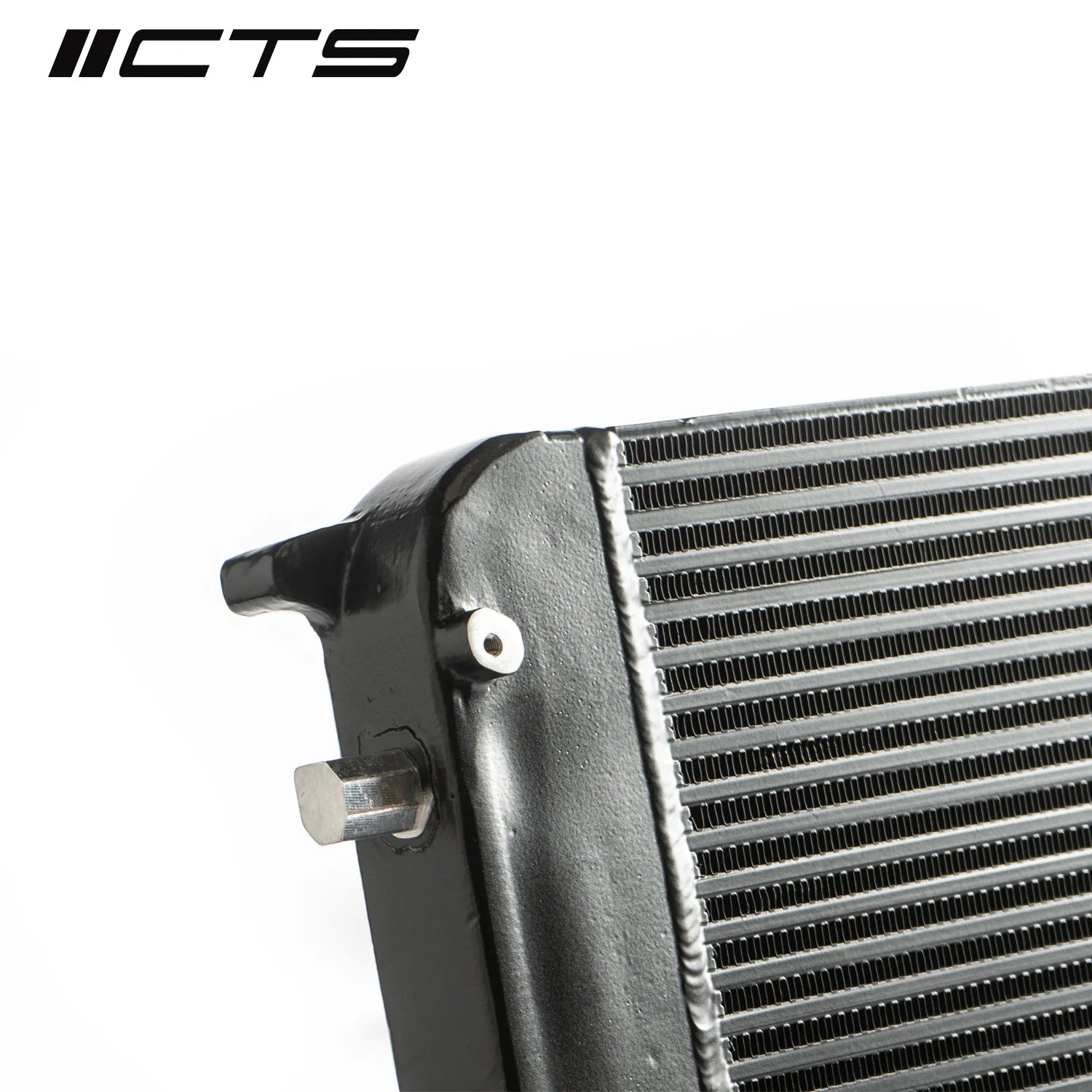

• Cast aluminum end tanks with mounting points molded into the end tank, NOT welded like lower quality intercoolers
• Installation instructions can be found under the "Installation Guides" tab on our website.

Assembly :

• Volkswagen GTI 2.0T 2006-2014
• 2012-2013Volkswagen Golf R 2.0T
• Volkswagen Jetta GLI 2.0T 2006-2013 (EA888.1 only)
• Volkswagen EOS 2.0T 2007-2016
• Volkswagen Passat 2.0T 2006-2010.
• Volkswagen CC 2.0T 2009-2017
• Volkswagen Beetle 2.0T 2012-2013 (EA888.1 only)
• Volkswagen Tiguan 2009-2018 (FWD only, 4motion AWD vehicles require custom hoses)
• Audi A3 2.0T 2006-2013
• Audi TT 2.0T 2008-2015 (Vehicles with Gen2 valve engine require MK6 GTI turbo outlet pipe and clip (1K0145840R and 1K0145769J)
• Audi TTS 2006-2013
