COLD PART KIT BMW F10 65MM 6+6 GEN 1

Optimize the performance of your turbocharger with our BMW F10 65 mm cold end kit , specially designed for the creation of high-performance hybrid turbos (2265, 2365, 2565, 2865, 3065).

This kit is precision CNC machined at PerfHunter , ensuring maximum quality and reliability for your BMW engine tune-ups and other applications.

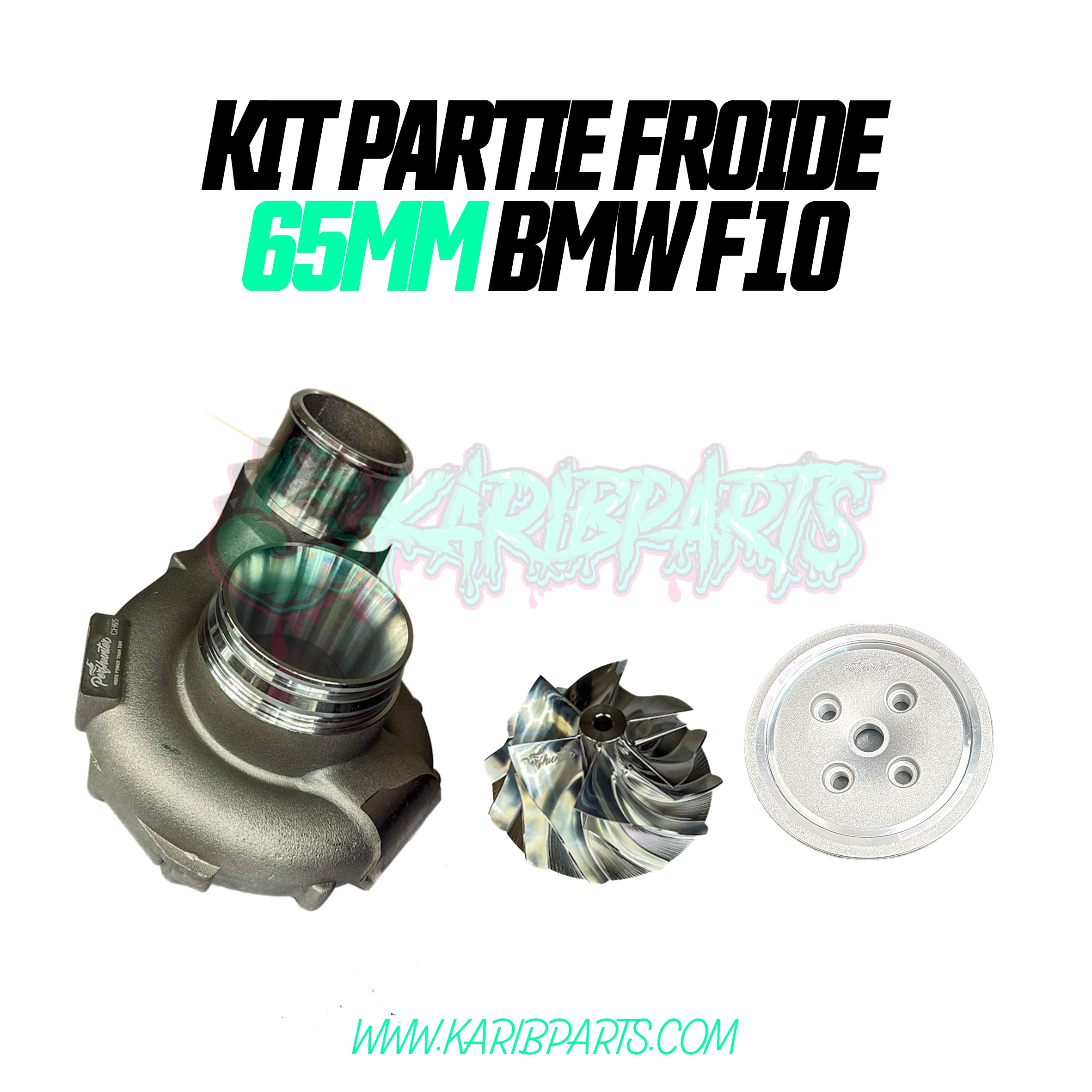

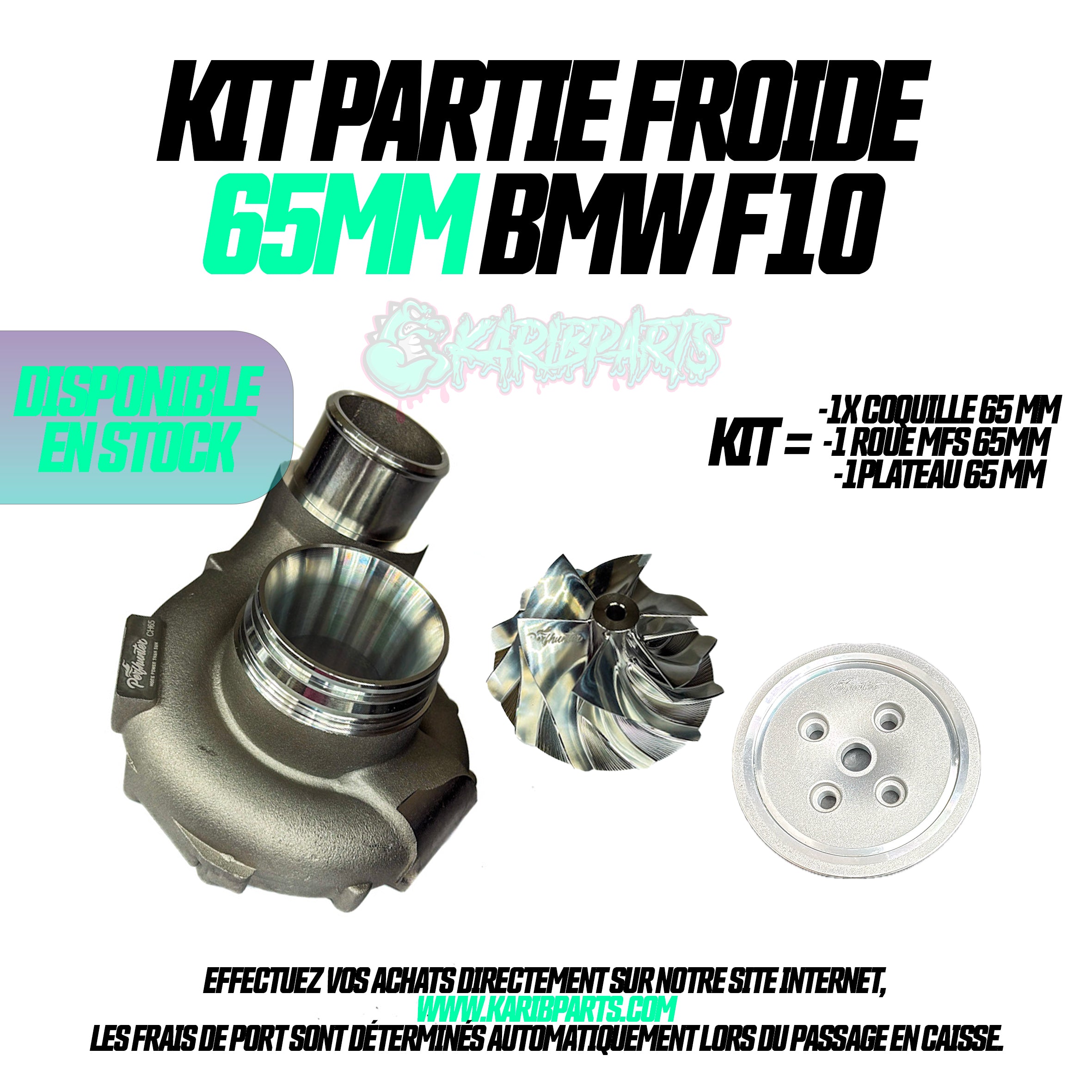

The kit includes:

• BMW F10 CNC Machined Cold Shell

• 65 mm chainring compatible with GT / GTB 22, 23, 25, 28, 30 turbos

• MFS 6+6 Extend compressor wheel , forged and dynamically balanced

Why choose a CNC machined shell over conventional turning?

✔ Extreme dimensional precision (to the hundredth of a millimeter) for a perfect fit with the compressor wheel → optimal performance.

✔ Guaranteed repeatability : each part is identical, unlike manual turning which can vary depending on the operator.

✔ Optimization of air flows thanks to the possibility of creating complex geometries, impossible with conventional turning → more flow and better turbo responsiveness.

✔ Enhanced durability : CNC machining respects material tolerances, reducing the risk of weak points and increasing resistance to high pressures/temperatures.

✔ Wide compatibility for hybridization (fits multiple wheel sizes like 2265, 2365, 2565, etc.).

✔ Professional finish with a smooth internal surface, reducing turbulence → less air loss and increased performance.

👉 In short, a CNC shell is the guarantee of a more efficient, more reliable and better optimized hybrid turbo .

Exact dimensions of the compressor wheel (MFS 6+6):

• Inductor (A): 50.20 mm

• Exducer (B): 65.00 mm

• Overall exducer (C): 69.83 mm

• Tip height (D): 5.19 mm

• Total height (E): 32.28 mm

• Superback (F): 3.68 mm

• Blade height (G): 26.30 mm

• Bore: 5.08 mm (Type: Through)

• Reduction: 1.0 mm

• Rotation: Forward

• Generation: Gen 1

Technical highlights:

✔ High-performance forged wheel – machined from solid

✔ Lighter than a standard wheel

✔ Dynamic balancing for increased reliability

✔ High-speed 6+6 blade design for more power and responsiveness

✔ Materials certified ISO 9001:2008 & ISO/TS 16949

Turbocharger compatibility:

• 758351

• 758352

• 758353

• 759352

• 765985

• 769909

• 776469

• 776470

⚠️ ATTENTION: Before any purchase, please check the exact reference written on the compressor housing of your turbo.

👉 This 65mm BMW F10 cold end kit is the ideal solution for your BMW F10 hybrid turbo projects or any preparation requiring increased flow and reliability.

References

• Original reference:059145722R
• Manufacturer Part Number:769909-0009, 769909-0010, 769909-5009SS, 769909-5010S, 776470-0001, 776470-0003, 776470-5001S, 776470-5003S, 769909-9, 769909-10, 776470-1, 776470-3, 769909, 776470
• 769705-0006, 769705-0007, 769705-0008, 776469-0004, 776469-0005

References

• Original reference:7794259H, 7794259L, 7794260, 7794260014, 11657794260, A7794259H, A7794260014, 7794259M12
• Référence fabriquant :758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, 758351-13, 758351-15, 758351-17, 758351-19, 758351-20, 758351-22, 758351-24, 758352-0005, 758352-0009, 758352-0011, 758352-0013, 758352-0015, 758352-0017, 758352-0021, 758352-0022, 758352-0024, 758352-0026, 758352-5022S, 758352-5024S, 758352-5026S, 758353-0005, 758353-0007, 758353-0009, 758353-0011, 758353-0013, 758353-0015, 758353-0017, 758353-0019, 758353-0020, 758353-0022, 758353-0024, 758353-5020S, 758353-5022S, 758353-5024S, 758353-9024S,

Vehicle allocation

• Vehicle make:BMW
• Vehicle model:BMW - 5, 7, X5, X6
• Engine size:530d, 530d xDrive, 730 Ld, 3.0d, 30d
• Power:231, 235

Compatible vehicles

• BMW 5 530d 2993 cc, 170 kW, 231 hp 2005/04-2007/02
• BMW 5 530d 2993 cc, 173 kW, 235 hp 2007/02-2009/12
• BMW 5 530d xDrive 2993 cc, 173 kW, 235 hp 2007/09-2009/12
• BMW 7 730 Ld 2993 cm3, 170 kW, 231 hp 2005/07-2009/12
• BMW X5 3.0d 2993 ccm, 173 KW, 235 hp 2007/02-2008/09
• BMW X6 30d 2993 ccm, 173 KW, 235 hp 2008/05-2008/08
• BMW 325 E90 E91 E92 E93 3.0 D 197 from 2005
• BMW 325 E90 LCI 3.0 D 24V 197 from 2007
• BMW 325 E90 LCI 3.0 D 24V 197 from 2008
• BMW 330 E90 E91 E92 E93 3.0 D 231 from 2005
• BMW X3 E83 3.0 D 218 from 2003
• BMW X3 xDrive 30d E83 3.0 D 211 218 from 2006
