The pistons for Audi / VW 2.0L TFSI engines have been developed for moderate to intensive tuning, mainly intended for road cars or club racing vehicles. Designed to meet the requirements of a high-mileage engine and/or road use, they are the result of the expertise of ZRP engineers and are manufactured in Germany from the high-silicon, low-expansion 4032 (T6) alloy.
This alloy allows the engine tuner to adopt a tighter piston/cylinder clearance, ensuring a better seal. This reduces the cold-start knocking noise often present on engines equipped with forged pistons, thus providing quiet operation and low oil consumption.

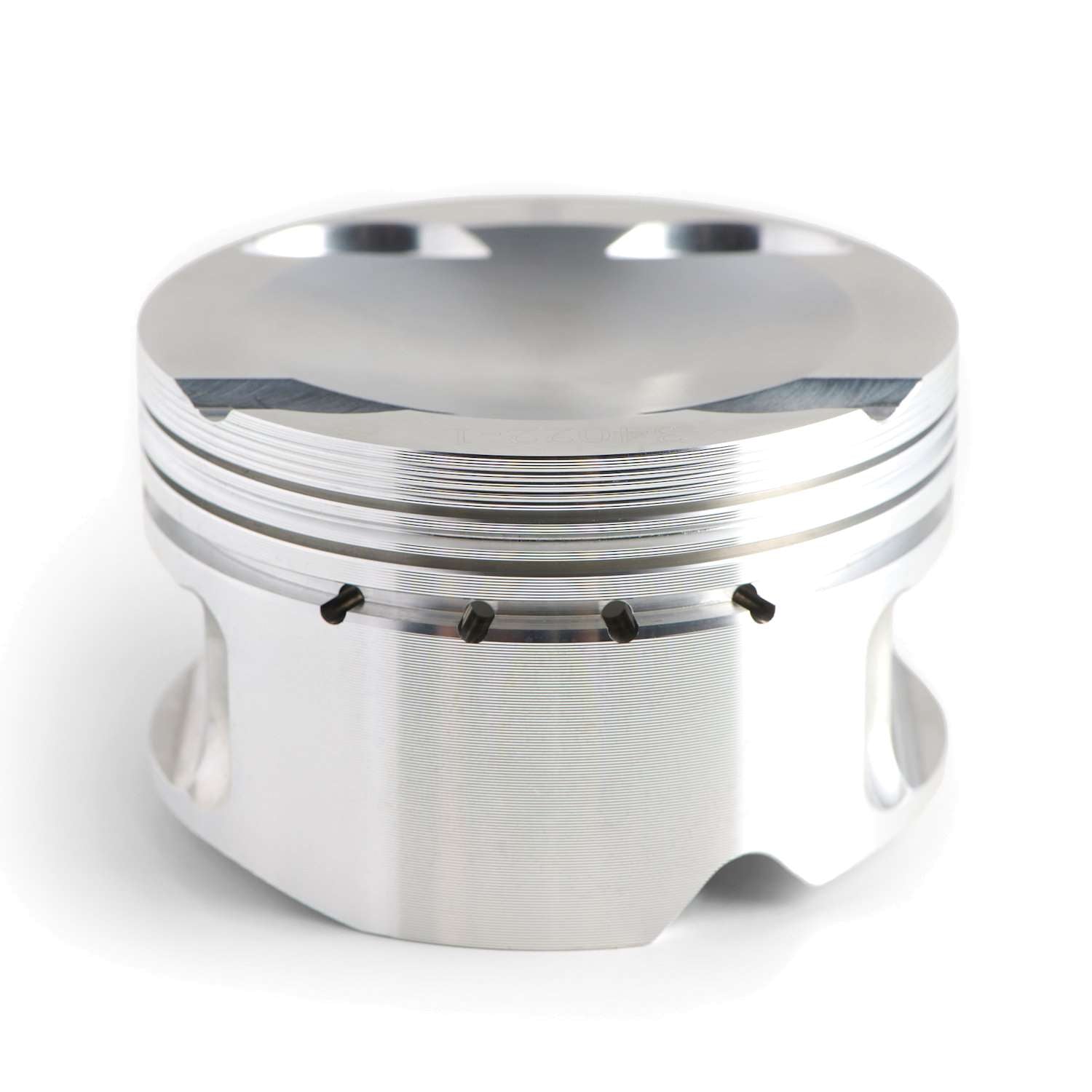

We opted for a design with a full round skirt reinforced by a lower band, as well as oversized and deeper valve pockets, allowing the use of high-lift camshafts. Offset piston pins ensure quiet operation, while the piston pins are made from 9310 alloy for optimum durability.
Product Features and Benefits:
- Anti-knock Grooves: Protect the first segments for increased life and performance.
- Gas pressure accumulation groove: Located on the second groove, it guarantees better sealing of the segments and greater longevity.
- Horizontal slots in the axle cage: Allow oil to penetrate between the axle and the cage, improving lubrication.
- Precision CNC Machining: Ensures perfectly fitted ring grooves.
- Material: High silicon 4032-T6 alloy for low thermal expansion.
- Polished Axle: Features a refined bore for increased durability.
- Inlet Cutouts: Fitted to the edge of the intake side.
- Full Round Skirt Design: Reinforced with a lower band for high power and/or boost applications.

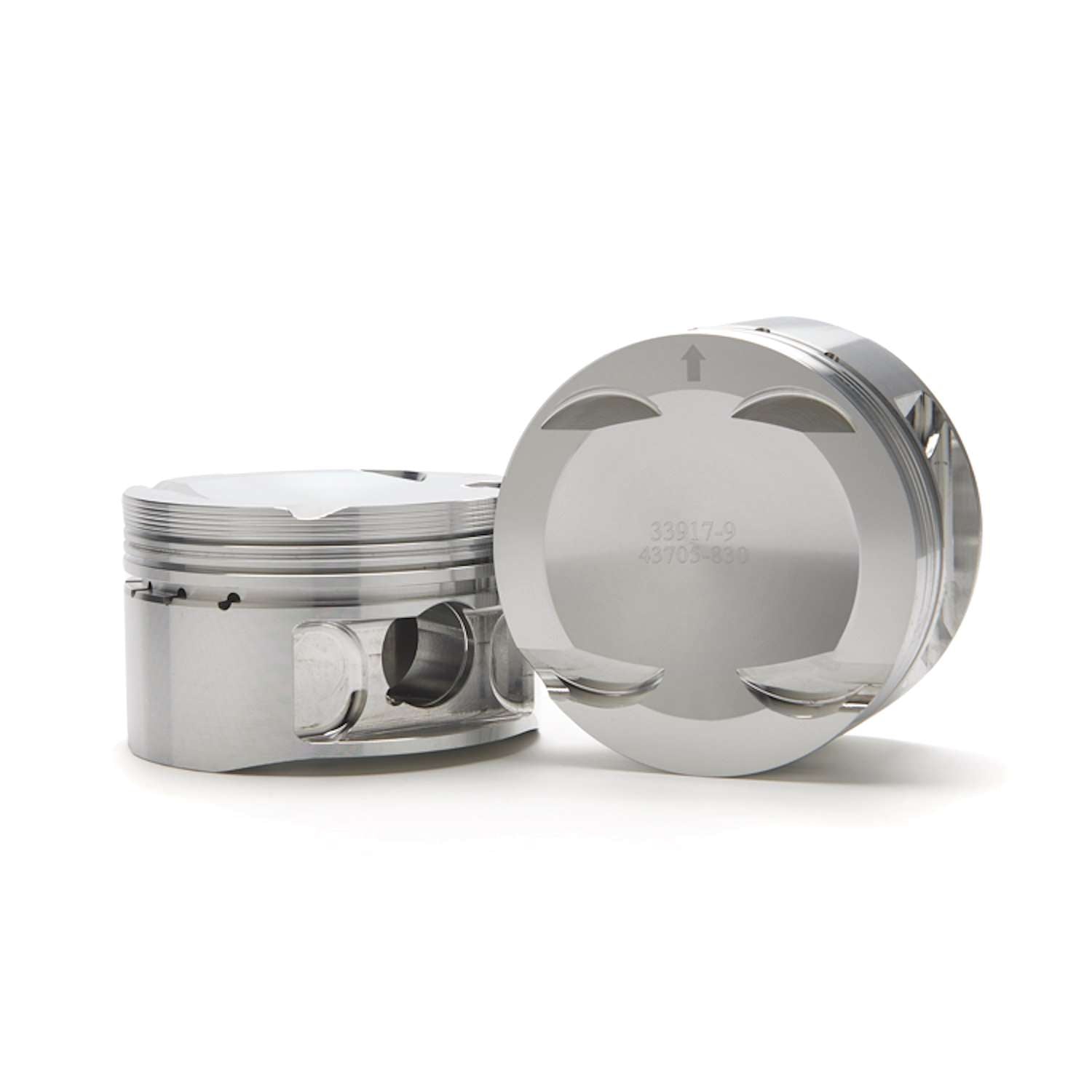

- Oversized Valve Pockets: Designed to accommodate larger valves and high lift camshafts.
- Squish Optimization: Improves engine life and increases power potential.
Optional Coatings (available on request):
- Thermal Barrier Coating: Blast Off Bronze for added heat protection.
- Moly Side-Skirt and Under-Crown Coating: Stealth Black for reduced friction and improved lubrication.
Important note:
These pistons are compatible with all engine configurations using 21.00 mm pins.

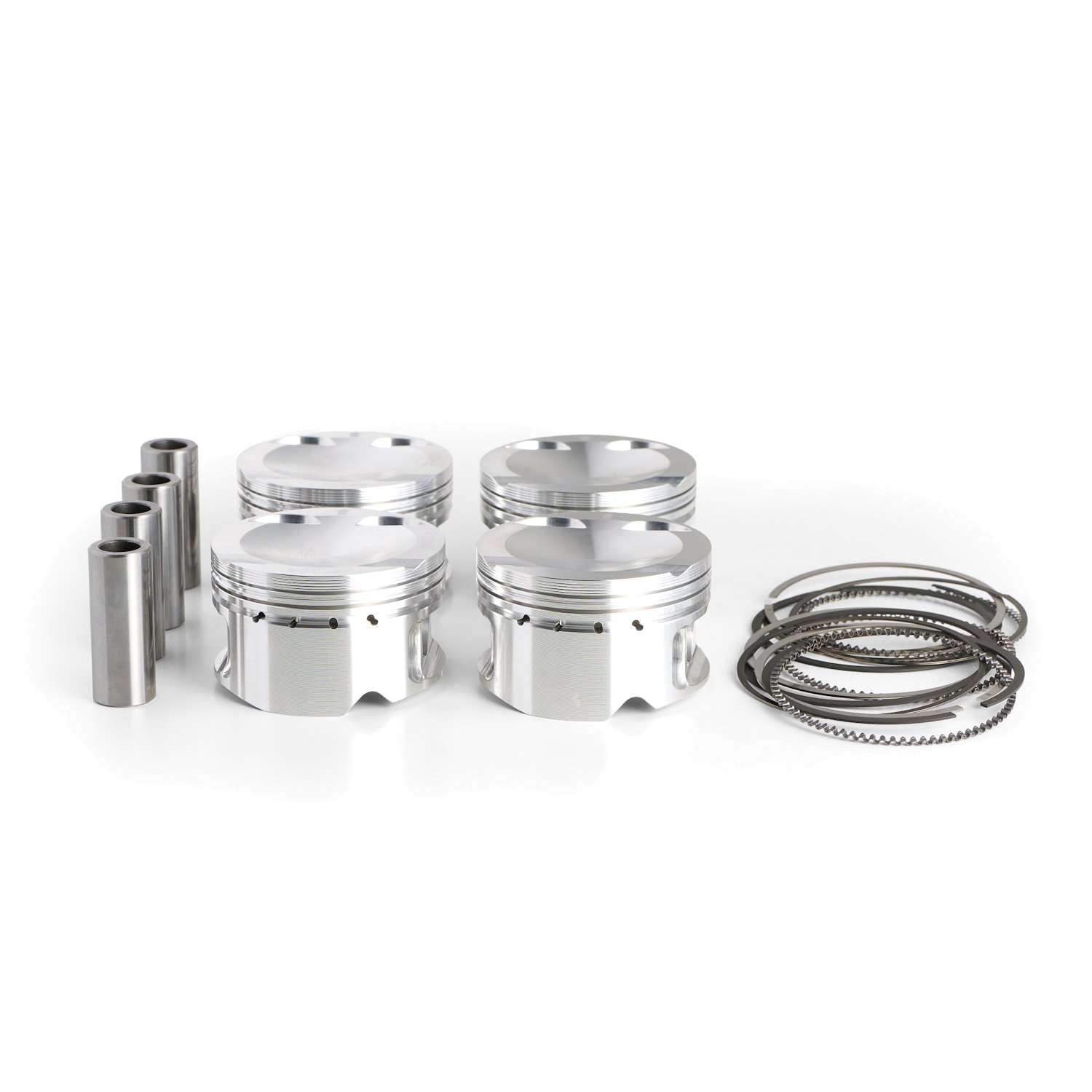

Included:
- High quality segment pack (1.00mm x 1.20mm x 2.80mm) made in Japan.
With their innovative design and advanced features, these forged pistons are ideal for engine performance enthusiasts and professionals looking for reliable and durable parts.
